Mainly used for heat treatment of materials in high vacuum atmosphere, suitable for bright annealing of silicon steel sheets, soft magnetic materials, electrical pure iron, copper alloys and other materials; High speed steel, mold steel, tool steel, alloy steel, titanium alloy, etc. are quenched and then bright tempered; Eliminate residual internal stresses in forgings, welded parts, cold stamped parts, and workpieces after quenching to prevent deformation and cracking of the workpieces.

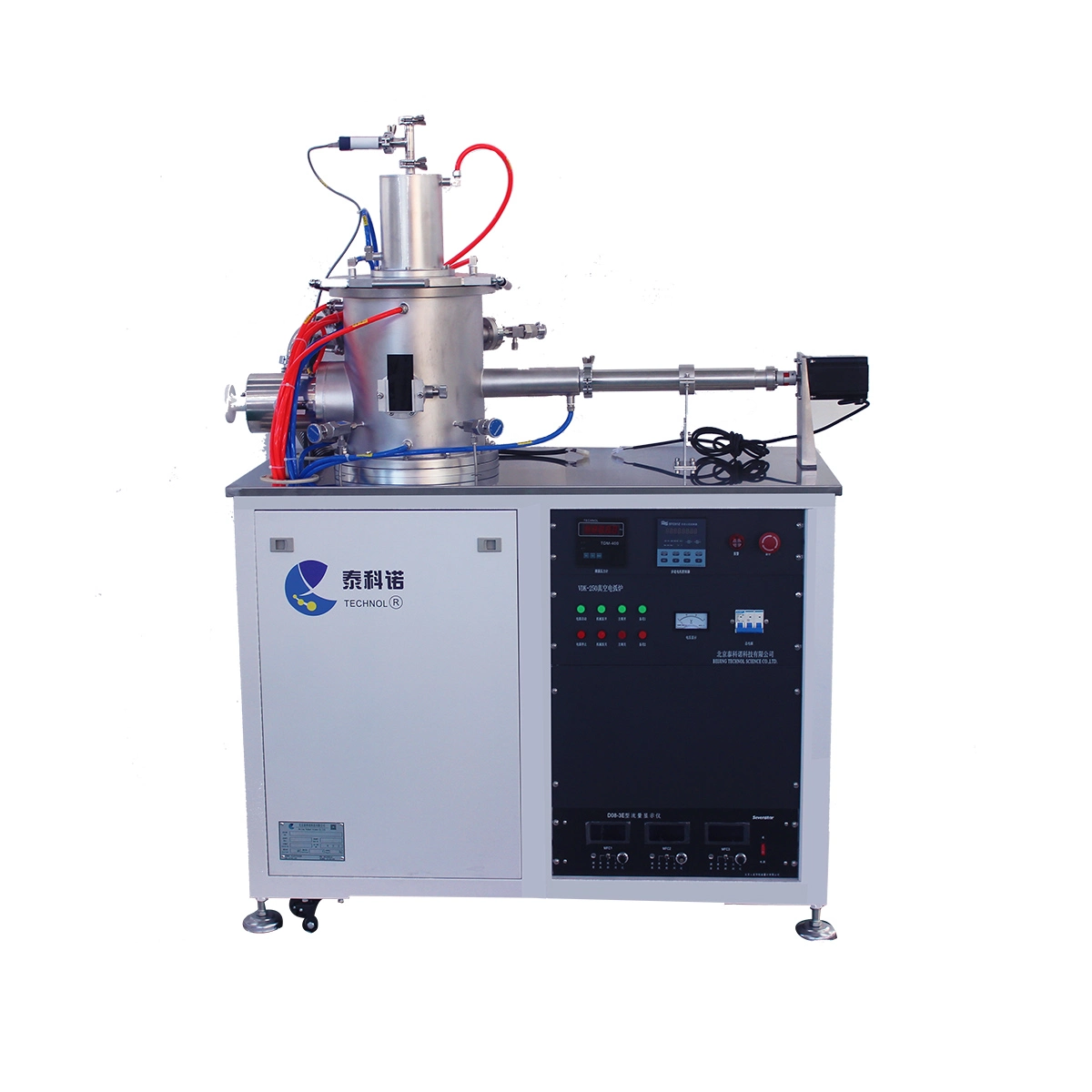

| Equipment name | Vacuum annealing/brazing furnace |
| Equipment model | VTHK350 |
| Vacuum chamber structure | stainless steel double-layer water cooling |
| Vacuum chamber size | Φ350mm×L550mm |
| Furnace size | Φ120mm×L300mm |
| Isothermal zone size | Φ120mm×L120mm |
| Heating temperature | room temperature ~ 1200℃, adjustable and controllable |
| Control mode | PLC control/industrial computer full automatic control (optional) |
| Footprint | L1200mm×W600mm×H1550mm |
| Total power | ≥ 20kW |
| Scope of application | widely used in R&D and small batch production of universities, research institutes and enterprises |
| Product features | high vacuum, high heating temperature, high control accuracy, high stability |
